Wedge Wire Screen

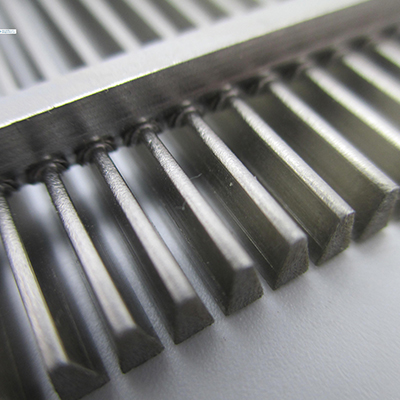

Wedge wire screen is a type of filtering screen, which is composed of profile wires and support rods. The profile wires are commonly triangle wire and the support wire of wedge wire screen can be triangle wire, round bar, flat wire or wedge wire. Wedge wire screen has various types and specs. The classification of wedge wire screen are mainly according to the shape of screen.

Main types of wedge wire screens are as follows:

• Wedge wire screen panel. Wedge wire screen panel is a panel shape screen with continuous slot sizes and various support bars. Wedge wire screen panel has various applications, including floors, drainage covers, vibrating screens and grain drying panels.

  Flat bar support rod wedge wire screen panel.


  Triangle support rod wedge wire screen panel.
• Wedge wire screen tube. Wedge wire screen tube is made of automatic machines, which the profiles wires are welded onto the support rod when it is rolling into the round tube. The wedge wire screen tube we supplied are complete round not the round shape with angles. This can suit more applications and have better filtering performance.

  Angled round surface wedge wire screen tube.

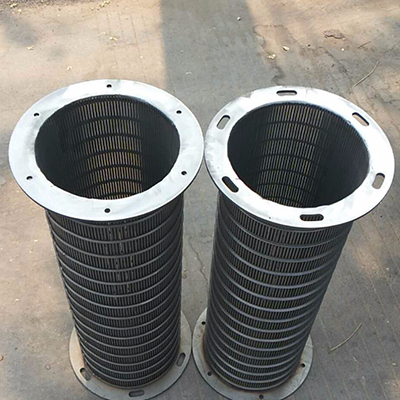

• Wedge wire screen cylinder. Wedge wire screen cylinder is similar to the wedge wire screen tube. The wedge wire screen cylinder has larger diameters than the wedge wire screen tube. This make the wedge wire screen cylinder can be used in the heavy duty and large applications.

  End type of wedge wire screen can be flange, end ring, threaded or others.
• Wedge wire screen support grid. Wedge wire screen support grid is a type of screen mesh with round shapes. It can be whole type, which has smaller diameters. It can also be divided into several parts for convenient transport and installation. Joint type wedge wire support grid is commonly has larger diameters.

  Whole type wedge wire support grid.
• Wedge wire sieve bends. Wedge wire sieve bends is an arc shaped screen panel. The wedge wire screen panels are arced by machine to form the sieve bends. Sieve bends is widely used in the mine, coal, cement and other applications for dewatering, filtering and screening.

  Stainless steel wedge wire sieve bends have durable and long service life.
• Wedge wire nozzles. Wedge wire nozzles are small parts of different filtering machines, especially the water treatment applications. The wedge wire nozzles can be divided into single wedge wire nozzles and double wedge wire nozzles. They can be installed onto different position of machines.

  wedge wire nozzle.

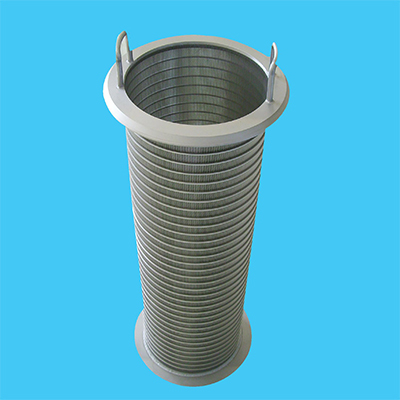

• Wedge wire screen basket. Wedge wire screen basket is widely used in the water treatment applications. The wedge wire screen basket has a narrow top and a wide bottom, which is widely used in different centrifuge machines.

  Wedge wire screen basket frame can be stainless steel, low carbon and painted steel.


  Flange can be added onto top and bottom of wedge wire screen basket.
